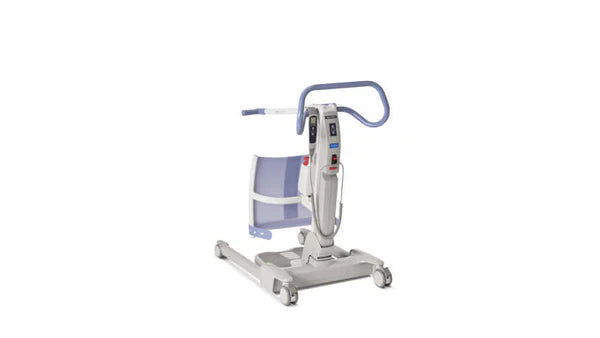

Arjo Sara Stedy® Flex-60601 Powered Standing And Transfer Patient Aid

Description

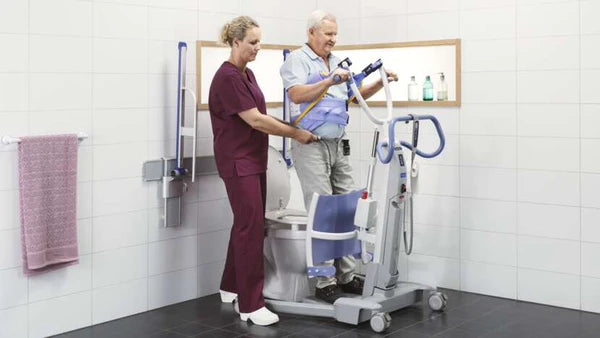

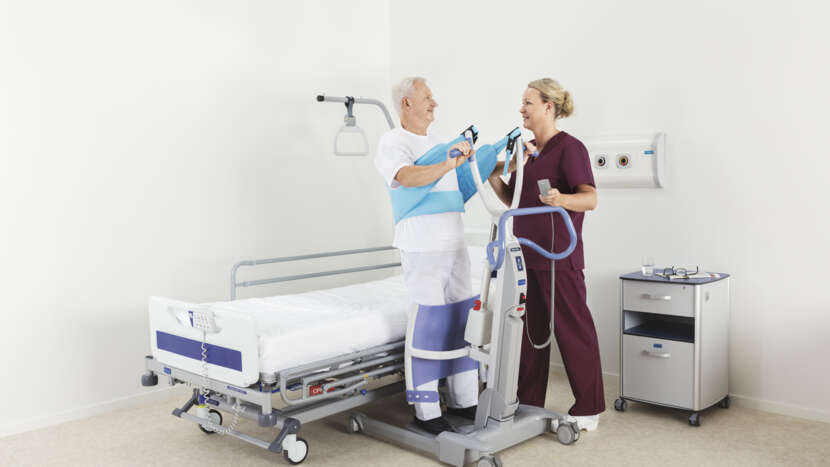

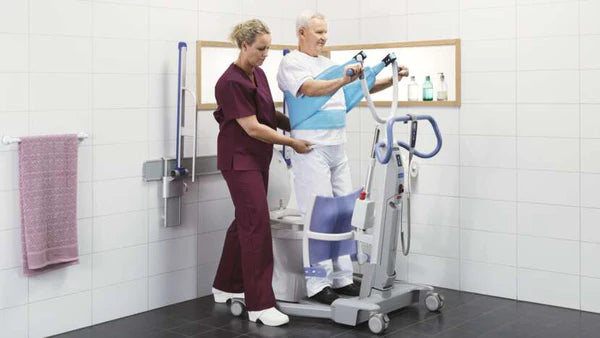

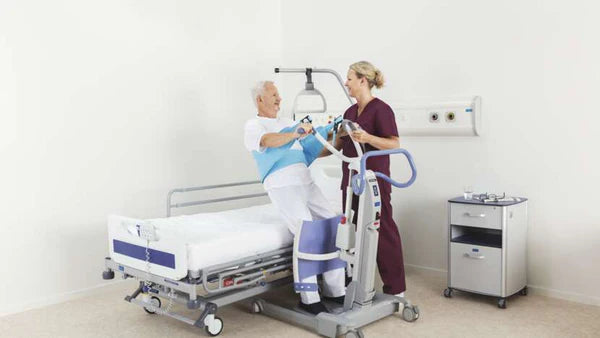

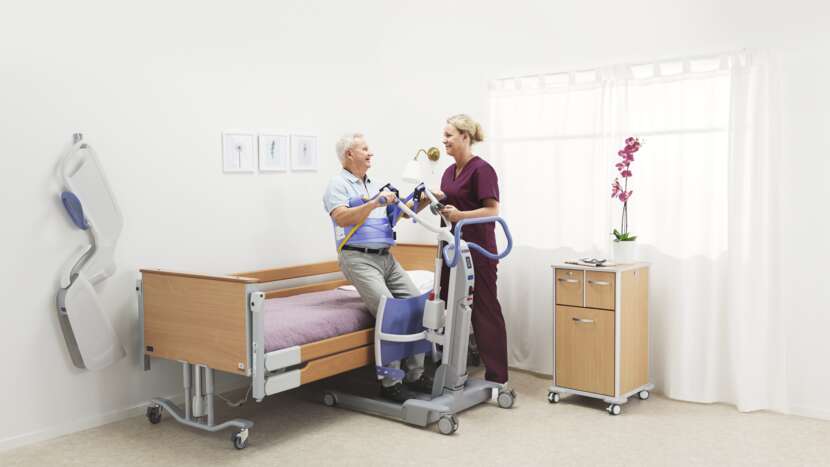

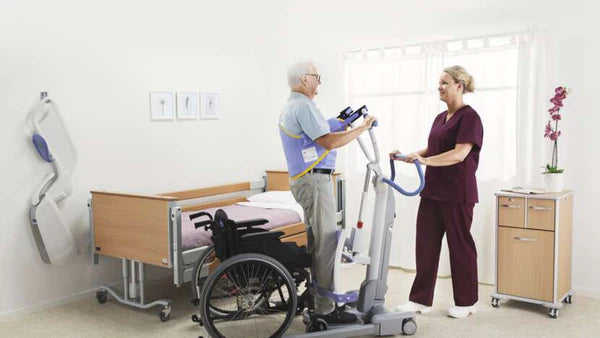

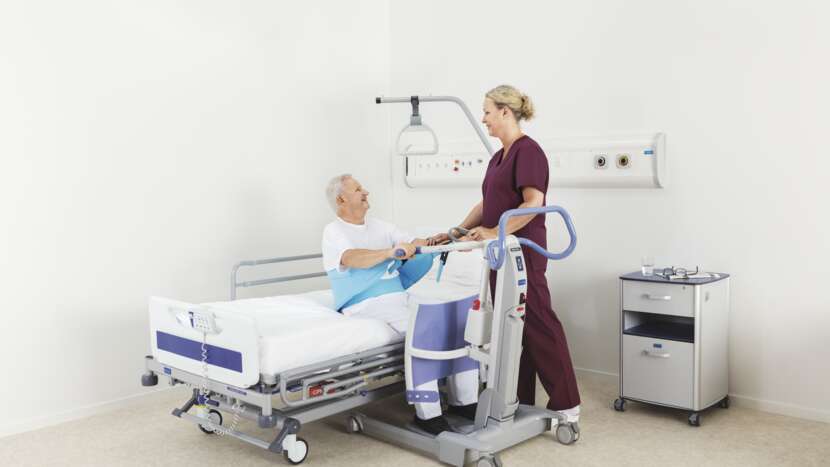

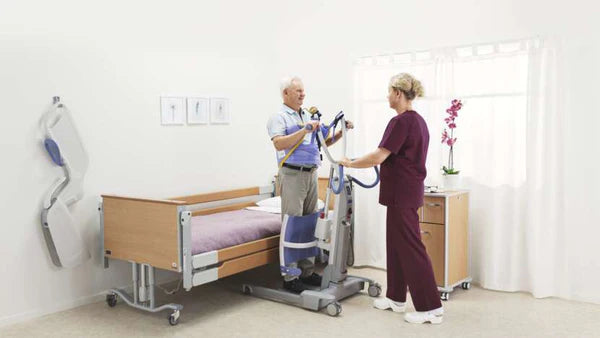

The Sara Flex is designed to enable a single caregiver to assist a patient or resident from a seated to a standing position in one smooth, natural movement. It promotes comfort and security throughout the sit-to-stand process, with supportive features that ensure the patient feels stable from start to finish.

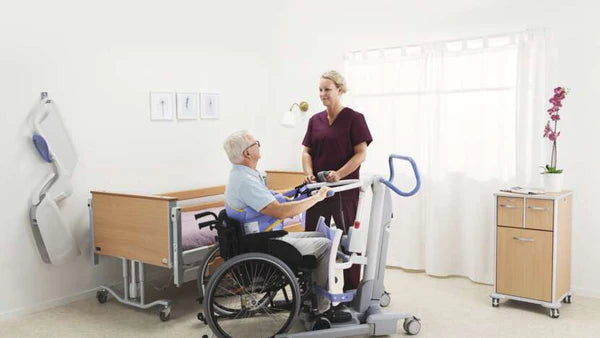

Sara Flex facilitates a range of essential transfers and care tasks with ease, requiring no adjustments and allowing for intuitive use by just one caregiver. The design encourages a natural forward movement, aided by flexible leg support that enhances the comfort and fluidity of the motion. This product has been reviewed and accredited by the Dementia Services Development Centre (DSDC) at the University of Stirling, earning a Product Accreditation Rating of Class 1B.

Key Features

• Flexible silicone leg support with a curved, soft surface provides comfortable support for lower legs and knees without the need for adjustments
• Low-positioned silicone leg strap includes multiple adjustment options for secure positioning during sit-to-stand transitions

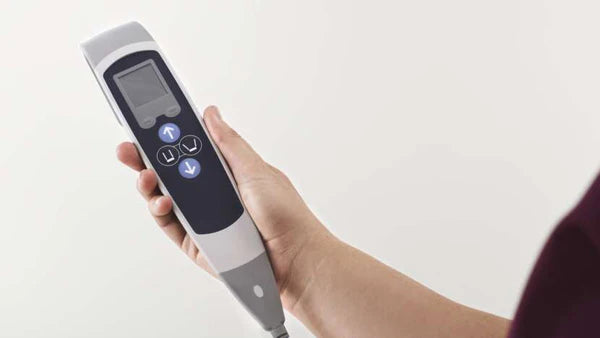

• Easy-to-use hand control with a display and long flexible cord allows the caregiver to remain close to the patient throughout the transfer

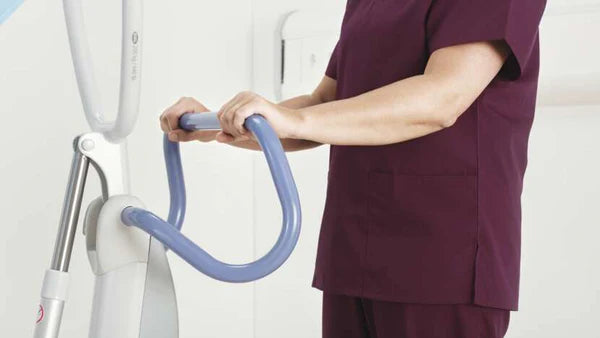

• Curved caregiver handle offers flexible gripping positions for ease of use

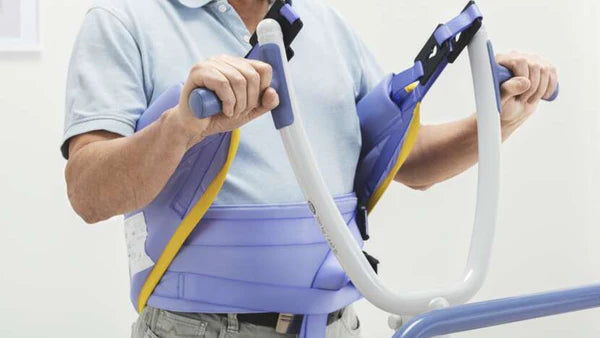

• Contrast-colored angled patient handle promotes proper alignment of hands, wrists, and elbows during movement

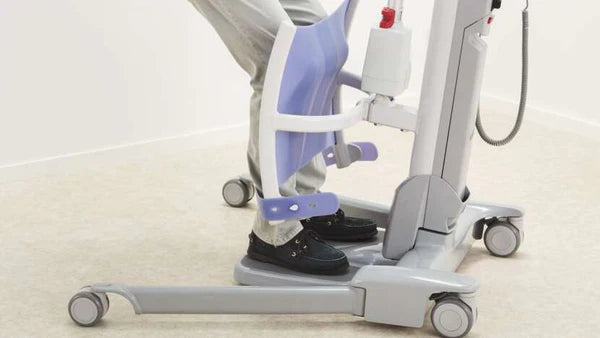

• Low horizontal footplate keeps feet close to the ground, minimizing knee lift and simplifying the standing motion
• Optional built-in electronic scale shows the patient’s weight directly on the hand control for added convenience
• Specifications

Safe working load
200 kg

Max safe working load
440 lbs

Lift weight (including battery)
53.6 kg

Lift weight (including battery)
118 lbs

Min lifting height
991 mm

Min lifting height
39 in

Max lifting height
1518 mm

Max lifting height
59.75 in

External width legs closed mm
660 mm

External width legs closed in
26 in

External width legs open
1029 mm

External width legs open
40.5 in

Internal width legs closed
527 mm

Internal width legs closed
20.75 in

Internal width legs open
896 mm

Internal width legs open
35.25 in

Leg clearance (floor to top of legs)
117 mm

Leg clearance (floor to top of legs)
4.75 in

Chassis clearance (floor to bottom of chassis)
102 mm

Chassis clearance (floor to bottom of chassis)
4 in

Lift total length mm
997 mm

Lift total length in
39.25 in

Turning radius mm
877 mm

Turning radius in
34.5 in

Electrical

Lift protection class
IPX4

Protection of electrical parts
IP24

Battery
24V DC

Battery Charge Indicator
Yes

Service meter displays the total usage of the device
Yes

Service meter displays the total usage of motor hours
Yes

Automatic safety cut-out if lowered onto an obstacle
Yes

Low battery audible, visible and tactile indicator
Yes
